Material handling stability directly influences AAC production efficiency. Bucket elevators and screw conveyors provide different solutions based on layout, material properties, and transportation requirements.
Bucket elevators focus on vertical lifting, while screw conveyors offer controlled horizontal transfer. Proper selection improves workflow, reduces downtime, and supports customized AAC plant designs.

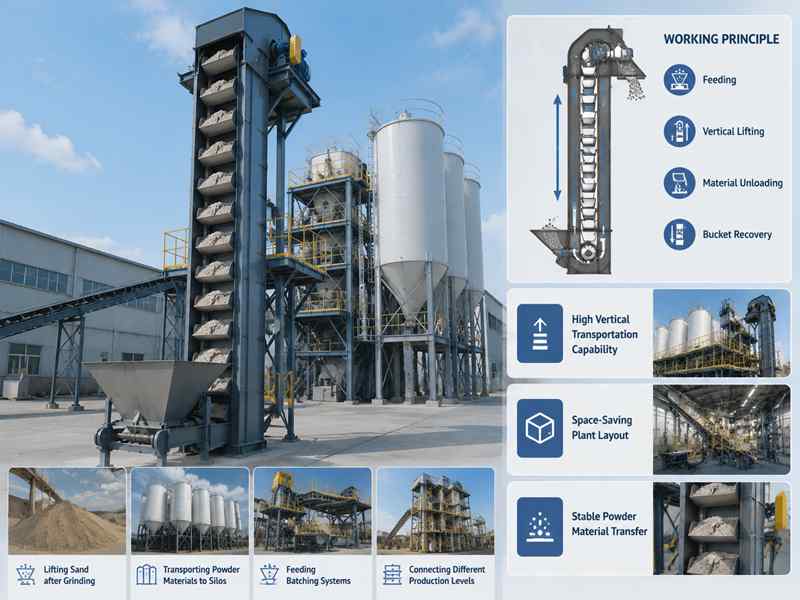

Bucket Elevator
Vertical Conveying Solution for Large Plant Layouts
Series of bucket components fixed on belt or chain assemblies serve as the core conveying unit of the equipment. As the driving system operates, buckets collect materials from the lower section and transport them upward before unloading at the required position.
For AAC plants with multi-level layouts, bucket elevators help save floor space and simplify material transfer between different production sections.
Typical applications:
- Lifting sand after grinding
- Transporting powder materials to storage silos
- Feeding batching systems
- Connecting different production levels
Working Principle
The working process of AAC bucket elevators covers feeding, vertical lifting, material unloading and bucket recovery. With this uninterrupted cycle, the equipment achieves efficient vertical conveying, lowers space requirements in factories, and provides reliable material supply for AAC production workflows.
Key Features
- High Vertical Transportation Capability
In AAC plants, storage silos and batching systems are often positioned at different elevations. Using traditional conveyors may require longer layouts, while bucket elevators can directly connect different production levels.
- Space-Saving Plant Layout
A bucket elevator reduces the need for long inclined conveyors and helps create a more compact production arrangement.
This is especially important for AAC projects where equipment layout must consider:
- Existing workshop dimensions
- Foundation limitations
- Future production expansion
- Maintenance accessibility
- Stable Powder Material Transfer
AAC production involves many powder materials, including cement and lime.
A properly designed bucket elevator can reduce material scattering during lifting and maintain stable feeding conditions for downstream equipment.

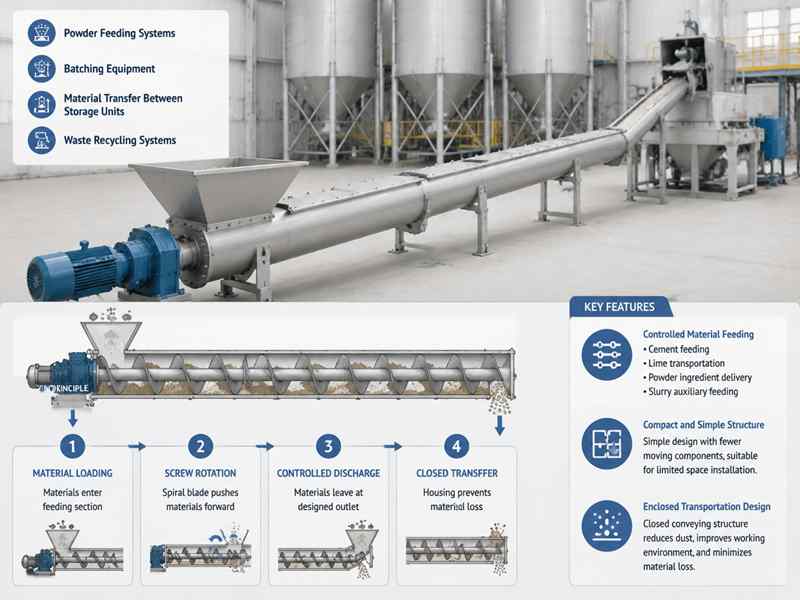

Screw Conveyor
Multi-Angle Flexible Material Transport
Unlike bucket elevators, screw conveyors are mainly used for short and medium-distance transportation where controlled material feeding is required.
In AAC production lines, screw conveyors are commonly applied in:
- Powder feeding systems
- Batching equipment
- Material transfer between storage units
- Waste recycling systems
Working Principle
The screw blade rotates through a motor-driven shaft, pushing materials along the conveyor direction.
| Stage | Function | Production Benefit |
| Material Loading | Materials enter feeding section | Stable material input |
| Screw Rotation | Spiral blade pushes materials forward | Continuous transportation |
| Controlled Discharge | Materials leave at designed outlet | Accurate feeding |
| Closed Transfer | Housing prevents material loss | Cleaner operation |
Key Features
- Controlled Material Feeding
Screw conveyors can regulate material movement more easily, making them suitable for processes requiring stable feeding rates.
For example:
- Cement feeding
- Lime transportation
- Powder ingredient delivery
- Slurry auxiliary feeding
- Compact and Simple Structure
Screw conveyors usually have a relatively simple structure with fewer moving components.
Accordingly, they are well-suited for deployment in space-restricted sites and integration with original production lines.
- Enclosed Transportation Design
AAC factories often need to control dust during powder material handling.
The closed conveying structure helps improve the working environment and reduces material loss during transportation.
Core Differences
| Comparison Item | Bucket Elevator | Screw Conveyor |
| Main Function | Vertical material lifting | Horizontal or inclined conveying |
| Typical Materials | Sand, fly ash, cement, lime powder | Powder materials, additives, recycled materials |
| Installation Position | Between different height levels | Around storage, batching, and mixing areas |
| Main Advantage | Saves floor space and provides high lifting ability | Provides stable feeding and flexible layout integration |
| Suitable Application | Large AAC plants with multi-level structures | Production lines requiring controlled material transfer |
A bucket elevator is mainly designed for vertical lifting, especially when materials need to be transferred between different production levels.
A screw conveyor focuses more on horizontal or inclined conveying, especially for controlled feeding and short-distance transfer.
Bucket Elevator Applications in AAC Plants
Connecting Ground-Level Storage and Elevated Silos
A bucket elevator can efficiently transport materials upward without occupying excessive workshop space.
- Sand storage to grinding system
- Ground sand to storage silo
- Powder materials to elevated batching units
Supporting Large Capacity Production Lines
For AAC plants with continuous production requirements, stable vertical transportation is essential.
Bucket elevators are suitable when production lines require:
- Long operating hours
- Continuous material supply
- Reduced manual handling
- Compact equipment arrangement
A properly designed bucket elevator can become an important connection point between different production sections.
Screw Conveyor Applications in AAC Plants
Accurate Feeding Before Mixing
Screw conveyors are often installed before mixing processes because they can provide relatively stable material delivery.
- Cement feeding
- Lime feeding
- Additive transportation
- Recycling material transfer
Improving Cleanliness During Powder Transportation
The closed structure of screw conveyors helps reduce dust generation during operation, making them suitable for areas where environmental control and equipment cleanliness are important.
How to Choose
Consider Plant Layout First
For AAC factories with tall buildings or multi-level production layouts, vertical transportation is usually a key requirement. In this situation, a bucket elevator can connect lower storage areas with upper silos or batching systems efficiently.
For plants with longer horizontal distances or compact layouts, screw conveyors may provide better flexibility.
A practical selection process should consider:
- Available installation height
- Distance between equipment
- Material storage position
- Future production expansion
Material Characteristics Affect Equipment Selection
| Material Type | Recommended Equipment Consideration |
| Sand | Bucket elevator for vertical transfer, screw conveyor for short-distance movement |
| Cement Powder | Screw conveyor with enclosed structure |
| Lime Powder | Screw conveyor for controlled feeding |
| Fly Ash | Selection depends on storage position and conveying distance |
Major Pitfalls When Picking AAC Transport Equipment
Using One Conveyor Type for All Processes
Various manufacturing links feature separate material transport standards. Single-type conveyor configuration may cause troubles in stable feeding, space layout and daily maintenance.
Ignoring Future Production Expansion
Some manufacturers make equipment purchase decisions relying entirely on their current output demands.
Given the long service cycle of AAC production lines, planning for future capacity growth during equipment selection effectively reduces follow-up replacement costs.
Overlooking Material Conditions
The functional performance of conveyors depends largely on material moisture, particle specification and fluidity.
Failure to evaluate on-site material features before equipment selection will trigger frequent blockages, irregular feeding and rising maintenance costs.
Bucket elevators handle vertical lifting, while screw conveyors provide flexible feeding. Proper selection improves AAC material flow, layout efficiency, and production stability.
