Stable sand milling quality underpins AAC manufacturing. Ball mills deliver uniform particle sizes, facilitating steady slurry blending and consistent finished block properties.

Wet and dry ball mills adopt distinct grinding modes; the optimal type is determined by raw material conditions, plant layout, throughput and personalized AAC production demands.

Tips at a Glance

A wet ball mill adds water during the grinding process, producing a sand slurry with controlled concentration. This slurry can be directly transferred to the AAC mixing process.

A dry ball mill processes sand without adding water. The finished material is discharged as dry powder and requires additional storage and feeding systems before slurry preparation.

Grinding Type	Processing Method	Final Material Form	Typical AAC Application
Wet Ball Mill	Sand + water grinding	Sand slurry	AAC slurry preparation line
Dry Ball Mill	Dry sand grinding	Fine sand powder	Powder storage or special processes

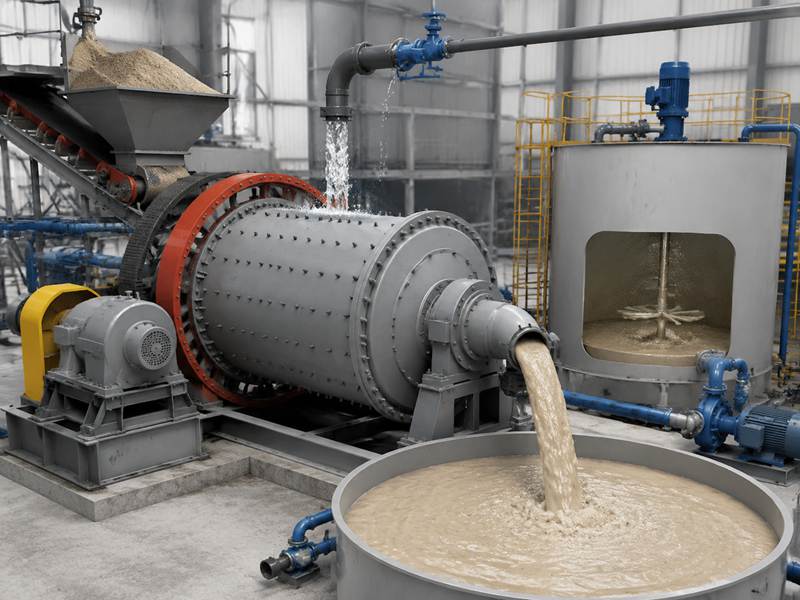

Wet Ball Mill for AAC Production

Direct Slurry Preparation

Wet ball milling combines sand grinding and slurry preparation in one step. Raw sand and water are processed by steel balls, producing uniform slurry with adjustable fineness for AAC mixing systems.

With discharge sizes around 0.074–0.89 mm, RunDing ball mills support different sand conditions, simplifying material transfer and improving AAC production consistency.

Stable Particle Distribution

Wet milling blends sand with water throughout the grinding process to boost particle homogeneity and slurry stability.

Steady wet grinding performance enables AAC facilities to sustain uniform block density, high productivity and consistent product quality.

Integration with AAC Slurry System

A wet ball mill is usually connected with:

• Sand feeding equipment
• Water supply system
• Slurry storage tank
• Slurry agitator
• Slurry pump

For AAC production lines requiring automatic operation, wet grinding reduces intermediate handling steps and allows easier connection with slurry preparation equipment.

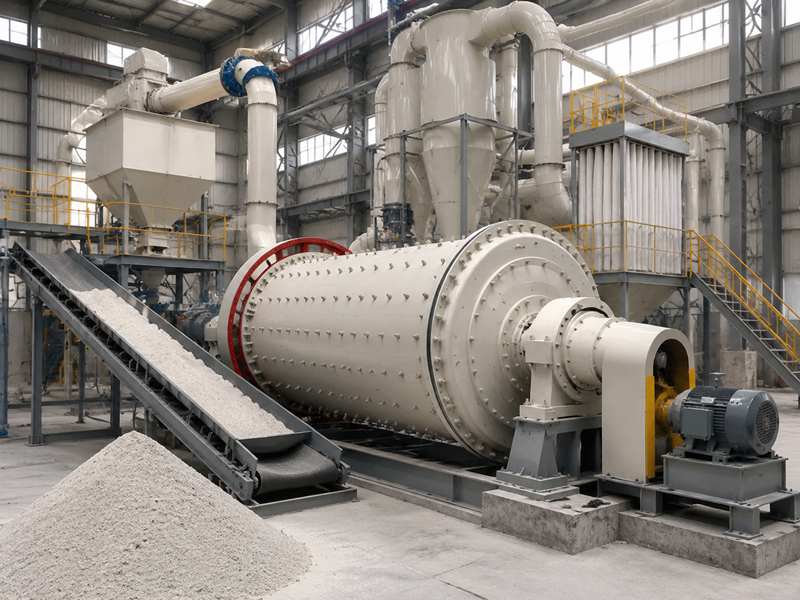

Dry Ball Mill for AAC Production

Independent Powder Grinding

It works well for AAC lines with separate grinding procedures, yet supporting dust conveying systems are required.

Suitable for Special Raw Material Conditions

Dry grinding can be considered when:

• Sand moisture content is low
• Powder storage is required
• Production processes require separated grinding and mixing
• Material transportation distance is long

For AAC factories using multiple raw material sources, dry grinding can provide more flexibility in material scheduling.

AAC Production Comparison

Item	Wet Ball Mill	Dry Ball Mill
Output Material	Sand slurry	Dry sand powder
Water Requirement	Required during grinding	Not required
Process Connection	Direct connection with slurry system	Requires powder handling
Material Storage	Limited slurry storage time	Easier powder storage
Equipment Integration	Suitable for complete AAC lines	Suitable for separated processes
Operation Focus	Stable slurry preparation	Flexible powder processing

Structure Differences in AAC Production

Wet and dry ball mills share similar structures, but differ in auxiliary systems, material handling, and AAC process integration.

Wet Ball Mill

The grinding chamber works together with water feeding, slurry discharge, and transportation equipment. After grinding, the material leaves the mill in slurry form and can be transferred directly to the next production stage.

Main components include:

• Grinding cylinder with steel ball media
• Water feeding system
• Slurry discharge system
• Slurry storage and transportation equipment
• Drive and control system

Dry Ball Mill

Since no water is introduced during grinding, the system requires additional powder collection and transportation equipment.

Main components include:

• Grinding cylinder
• Steel ball grinding media
• Dry material feeding system
• Powder discharge system
• Dust collection equipment

For AAC factories using dry grinding, the following processes usually need additional design consideration:

• Powder conveying distance
• Storage silo capacity
• Dust protection
• Secondary mixing preparation

Production Efficiency Comparison

Evaluation Factor	Wet Ball Mill	Dry Ball Mill
Material Transfer	Direct slurry transfer	Powder conveying required
Process Continuity	High integration with AAC line	More independent operation
Storage Flexibility	Requires slurry management	Easier powder storage
System Layout	More compact process connection	More auxiliary equipment

Maintenance Requirements

Wet Ball Mill

• Slurry concentration control
• Sealing performance
• Discharge system condition
• Corrosion protection of related components

Proper maintenance helps maintain stable slurry quality and reduces unexpected production interruptions.

Dry Ball Mill Maintenance

• Dust collection efficiency
• Powder discharge condition
• Material blockage prevention
• Ventilation system performance

For plants operating in dry environments, maintaining a stable internal grinding condition is important for consistent output.

Application Matching

Wet Ball Mill Application

Recommended for AAC plants that require:

• Direct sand slurry preparation
• Continuous production operation
• Integrated grinding and mixing process
• Stable slurry transportation

Typical configuration:

Sand → Crusher → Wet Ball Mill → Slurry Tank → Mixing System → Casting

Dry Ball Mill Application

• Independent sand powder production
• Material storage flexibility
• Separate grinding and mixing processes
• Longer-distance material transportation

Typical configuration:

Sand → Crusher → Dry Ball Mill → Powder Storage → Mixing Preparation

AAC Ball Mill Selection Based on Production Requirements

RunDing ball mills are designed with different specifications according to AAC line requirements. The available capacity range covers approximately 0.65–180 t/h, with feeding size up to 25 mm depending on equipment configuration.

The selection process mainly considers:

• Required AAC block output
• Sand hardness
• Required grinding fineness
• Available installation space
• Slurry preparation method
• Continuous operation requirements

Custom Ball Mill Solutions for AAC Production

A standard ball mill configuration may not always match every production condition. Custom design allows equipment parameters to better fit the complete AAC process.

RunDing provides Custom ball mill solutions based on:

Raw Material Characteristics

Sand hardness, moisture content, and initial particle size influence grinding performance.

Customized solutions may include:

• Suitable mill capacity selection
• Grinding media adjustment
• Feeding system optimization
• Discharge configuration design

Production Capacity Requirements

AAC production lines may range from small block factories to large-scale industrial plants.

Ball mill selection should match:

• Daily AAC block output
• Required slurry volume
• Continuous operating hours
• Future production expansion plans

RunDing ball mill systems support capacity configurations from approximately 0.65 t/h to 180 t/h, allowing selection according to different production scales.

Plant Layout Requirements

Factory space and equipment arrangement also affect ball mill configuration.

Custom solutions can consider:

• Horizontal transportation distance
• Slurry storage position
• Feeding height
• Maintenance access
• Connection with existing AAC equipment

Selection Guide for AAC Manufacturers

Consideration	Recommended Choice
Need direct slurry production	Wet Ball Mill
Require dry powder storage	Dry Ball Mill
Continuous AAC block production	Wet Ball Mill
Separate grinding process	Dry Ball Mill
Integrated AAC production line	Wet Ball Mill
Flexible material handling	Dry Ball Mill

For AAC manufacturers, the ideal grinding solution depends on production capacity, sand characteristics, and overall process design. With suitable configuration and Custom engineering support, the ball mill can become a stable foundation for efficient AAC production.
