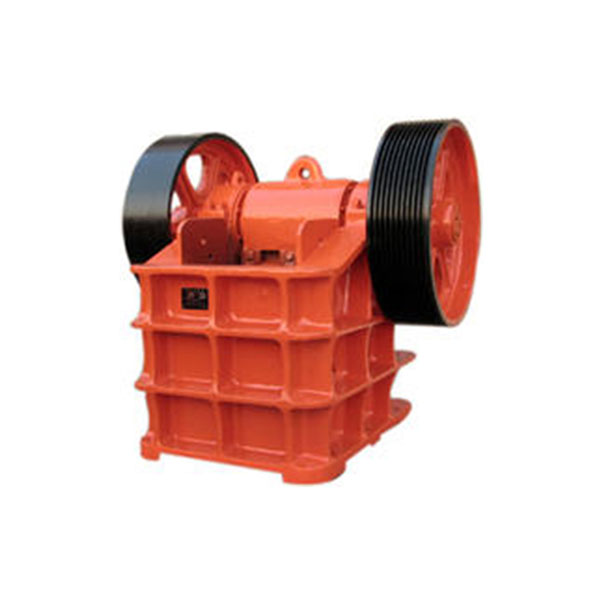

Jaw Crusher
- Improves raw material preparation speed and helps keep the AAC production process running smoothly.
- Allows flexible particle size control to meet different AAC production requirements.
- Durable jaw plates and key components help reduce wear, maintenance frequency, and replacement costs.
- Supports continuous crushing performance, ensuring stable feeding for the next production stage.
- Can be connected with conveyors, silos, ball mills, and other AAC production line equipment.
How is a jaw crusher used in AAC block manufacturing?
In AAC production, raw materials such as lime and gypsum often need to be crushed before entering the ball mill or batching system. Large materials are broken up into tiny bits by the jaw crusher using compression force, which makes it simpler to grind and combine them later in the production process.
It plays a front-end role in the AAC production process, helping ensure stable material feeding, better grinding efficiency, and smoother operation of the complete AAC block making machine.
Materials Suitable for Crushing
- Lime
- Gypsum
- Cement clinker
- Limestone
- Other AAC raw materials
| Model | Inlet size(mm) | Inlet side length(mm) | Output Adjustment Rage(mm) | Capacity(t/h) | Power(kw) | Oversize(mm) |
| PE250×400 | 250×400 | 200 | 20-50 | 5-20 | 15 | 1430×1310×1340 |
| PE400×600 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 1700×1732×1653 |
| PE500×750 | 500×750 | 425 | 50-100 | 40-100 | 45-55 | 2035×1921×2000 |
| PE600×900 | 600×900 | 480 | 65-160 | 60-140 | 55-75 | 2290×2206×2370 |
| PE750×1060 | 750×1060 | 630 | 80-150 | 80-230 | 90-110 | 2655×2302×3110 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 140-320 | 110-132 | 3789×3050×3025 |
| PE1000×1200 | 1000×1200 | 850 | 105-185 | 180-400 | 160-200 | 3900×3320×3280 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 250-800 | 220-250 | 4300×3540×4043 |
| PEX150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 896×745×935 |
| PEX150×750 | 150×750 | 125 | 12-45 | 5-16 | 15 | 1205×1495×1203 |
| PEX250×750 | 250×750 | 210 | 25-60 | 10-40 | 22-30 | 1667×1545×1020 |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 15-50 | 30-37 | 1964×1550×1380 |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 2192×1605×1415 |
| PEX400×1200 | 400×1200 | 320 | 35-95 | 28-95 | 45-55 | 2256×2100×1960 |
